Eccentricity Truncation Level Exploration
Using TidalPy’s high-level functional programming, we will see how different eccentricity truncation levels affect tidal dissipation.
Also see the TidalPy/Papers/Renaud+2020 Notebook
[1]:
import math
from typing import Tuple
import numpy as np
import matplotlib.pyplot as plt
# %matplotlib ipympl
from matplotlib.gridspec import GridSpec
from matplotlib.lines import Line2D
import matplotlib.colors as mcolors
from cmcrameri import cm as cmc
from TidalPy.structures import build_world
from TidalPy.toolbox.quick_tides import dual_dissipation_from_dict_or_world_instance as calculate_dissipation
from TidalPy.utilities.conversions import orbital_motion2semi_a
from TidalPy.utilities.numpy_helper.array_other import neg_array_for_log_plot, find_nearest
# Setup plot style
overall_scale = 0.79
_colors = np.vstack((cmc.lajolla_r(np.linspace(0., 1, 128)), cmc.lajolla(np.linspace(0., 1, 128))))
divergence_lajolla = mcolors.LinearSegmentedColormap.from_list('divergence_lajolla', _colors)
if overall_scale == 1:
plt.rcParams.update({'font.size': 14})
elif overall_scale < 1:
plt.rcParams.update({'font.size': 12})
elif overall_scale > 1:
plt.rcParams.update({'font.size': 16})
saturation_percent = .8
vik_N = cmc.vik.N
# Colorblind safe reds and blues
red = cmc.vik(math.floor(vik_N * saturation_percent))
blue = cmc.vik(math.floor(vik_N * (1 - saturation_percent)))
# Build a simple homogenious planet around a star
host = build_world('sol')
planet = build_world('earth_simple')
[2]:
# Rheological Parameters
rheologies = {
'Andrade': ('b', 'andrade', (0.3, 1.0)),
'Maxwell': ('k', 'maxwell', tuple()),
'Sundberg': ('m', 'sundberg', (0.2, 0.02, 0.3, 1.0)),
'Sundberg-Cooper': ('m', 'sundberg', (0.2, 0.02, 0.3, 1.0)),
'CPL': ('g', 'cpl', tuple()),
'CTL': ('c', 'ctl', tuple()),
'Off': ('gray', 'Off', tuple())
}
Setup calculation and plotting function
[3]:
def truncation_level_plots(target_obliquity=0., target_viscosity=1.e22, target_shear=50.e9, target_rheo='Sundberg-Cooper',
target_k2=0.33, target_q=100.,
orbital_period: float = 10.,
host_spin_period: float = None, host_k2=0.33, host_q=6000., host_obliquity = 0.,
order_l_cases: Tuple[int, int, int, int] = (2, 2, 2, 2),
eccentricity_trunc_cases: Tuple[int, int, int, int] = (2, 6, 10, 20),
zpoints=np.linspace(-4, 4, 60), zticks=(-4, -2, 0, 2, 4), year_scale=1,
ztick_names = ('$-10^{4}$', '$-10^{2}$', '$0$', '$10^{2}$', '$10^{4}$'),
resolution: int = 350):
# Pull out data
constant_orbital_freq = 2. * np.pi / (orbital_period * 86400.)
if host_spin_period is None:
constant_host_spin_rate = constant_orbital_freq
else:
constant_host_spin_rate = 2. * np.pi / (host_spin_period * 86400.)
constant_semi_major_axis = orbital_motion2semi_a(constant_orbital_freq, host.mass, planet.mass)
rheo_color, rheo_name, rheo_input = rheologies[target_rheo]
use_obliquity = (target_obliquity != 0.) or (host_obliquity != 0.)
# Figure out year scale
known_scales = {1: 'yr', 1e1: 'dayr', 1e2: 'hyr', 1e3: 'kyr', 1e6: 'Myr', 1e9: 'Gyr'}
if year_scale not in known_scales:
raise ValueError('Unknown Year Scale')
year_name = known_scales[year_scale]
# Domains
eccentricity_domain = np.logspace(-2, 0., int(resolution/2))
spin_scale_domain = np.linspace(0., 3., int(resolution/2))
# Make sure to hit resonances
spin_scale_domain_res = np.asarray([0.5, 1., 1.5, 2., 2.5, 3.])
spin_scale_domain = \
np.sort(np.concatenate((spin_scale_domain, spin_scale_domain_res)))
spin_domain = spin_scale_domain * constant_orbital_freq
eccentricity, spin_rate = np.meshgrid(eccentricity_domain, spin_domain)
shape = eccentricity.shape
eccentricity = eccentricity.flatten()
spin_rate = spin_rate.flatten()
# Make sure that all input arrays have the correct shape
x = eccentricity_domain
y = spin_scale_domain
target_obliquity *= np.ones_like(eccentricity)
host_obliquity *= np.ones_like(eccentricity)
constant_orbital_freq *= np.ones_like(spin_rate)
constant_semi_major_axis *= np.ones_like(spin_rate)
constant_host_spin_rate *= np.ones_like(constant_orbital_freq)
# Find spin_sync index
sync_index = find_nearest(spin_scale_domain, 1.)
# Cases that are plotted (must be equal to 4, must have the format (order-l, eccentricity_trunc)
if len(order_l_cases) != 4 or len(eccentricity_trunc_cases) != 4:
raise ValueError('Both order_l_cases and eccentricity_trunc_cases must each have 4 cases.')
case_line_styles = ['-', '--', '-.', ':']
case_names = ['$\\mathcal{O}(e^{' + f'{trunc_level}' + '}$)' if order_l == 2
else '$l = ' + f'{order_l}' + ', \\mathcal{O}(e^{' + f'{trunc_level}' + '}$)'
for order_l, trunc_level in zip(order_l_cases, eccentricity_trunc_cases)]
# Setup plots
# Contour Figure
fig_contours = plt.figure(figsize=(6.75*1.75*overall_scale, 4.8*overall_scale), constrained_layout=True)
ratios = (.249, .249, .249, .249, .02)
gs_contours = GridSpec(1, 5, figure=fig_contours, width_ratios=ratios)
case_contour_axes = [fig_contours.add_subplot(gs_contours[0, i]) for i in range(4)]
colorbar_ax = fig_contours.add_subplot(gs_contours[0, 4])
# Spin-sync Figure
fig_sync, sync_axes = plt.subplots(ncols=2, figsize=(1.5 * 6.4*overall_scale, 4.8*overall_scale))
fig_sync.subplots_adjust(wspace=0.4)
fig_sync.suptitle('Spin Synchronous', fontsize=16)
sync_heating_ax = sync_axes[0]
sync_eccen_ax = sync_axes[1]
# Labels
for ax in [sync_heating_ax, sync_eccen_ax] + case_contour_axes:
if ax in [sync_heating_ax, sync_eccen_ax]:
ax.set(xlabel='Eccentricity', xscale='linear')
else:
ax.set(xlabel='Eccentricity', xscale='log')
for ax in fig_contours.get_axes():
ax.label_outer()
case_contour_axes[0].set(ylabel='$\\dot{\\theta} \\; / \\; n$')
sync_heating_ax.set(ylabel='Tidal Heating [W]', yscale='log')
sync_eccen_ax.set(ylabel='$\\dot{e}$ [' + year_name + '$^{-1}$]', yscale='log')
for case_i, (order_l, eccentricity_trunc) in enumerate(zip(order_l_cases, eccentricity_trunc_cases)):
# Calculate Derivatives
dissipation_results = \
calculate_dissipation(
host, planet,
viscosities=(None, target_viscosity), shear_moduli=(None, target_shear),
rheologies=('fixed_q', rheo_name), complex_compliance_inputs=(None, rheo_input),
obliquities=(host_obliquity, target_obliquity),
spin_frequencies=(constant_host_spin_rate, spin_rate),
tidal_scales=(1., 1.),
fixed_k2s=(host_k2, target_k2), fixed_qs=(host_q, target_q),
eccentricity=eccentricity, orbital_frequency=constant_orbital_freq,
max_tidal_order_l=order_l, eccentricity_truncation_lvl=eccentricity_trunc,
use_obliquity=use_obliquity,
# The following scales convert da/dt & de/dt to yr-1; d^2theta/dt^2 to yr^-2
da_dt_scale=(3.154e7 / 1000.), de_dt_scale=3.154e7,
dspin_dt_scale=((360. / (2. * np.pi)) * 3.154e7**2))
tidal_heating_targ = dissipation_results['secondary']['tidal_heating']
dspin_dt_targ = dissipation_results['secondary']['spin_rate_derivative']
de_dt = dissipation_results['eccentricity_derivative']
da_dt = dissipation_results['semi_major_axis_derivative']
# Reshape
tidal_heating_targ = tidal_heating_targ.reshape(shape)
dspin_dt_targ = dspin_dt_targ.reshape(shape)
de_dt = de_dt.reshape(shape)
# Prep for log plotting
dspin_dt_targ *= year_scale**2
de_dt *= year_scale
dspin_dt_targ_pos, dspin_dt_targ_neg = neg_array_for_log_plot(dspin_dt_targ)
de_dt_pos, de_dt_neg = neg_array_for_log_plot(de_dt)
# Make data Symmetric Log (for negative logscale plotting)
logpos = np.log10(np.copy(dspin_dt_targ_pos))
logpos[logpos < 0.] = 0.
negative_index = ~np.isnan(dspin_dt_targ_neg)
logneg = np.log10(dspin_dt_targ_neg[negative_index])
logneg[logneg < 0.] = 0.
dspin_dt_targ_combo = logpos
dspin_dt_targ_combo[negative_index] = -logneg
# Plot Contours
case_name = case_names[case_i]
contour_ax = case_contour_axes[case_i]
contour_ax.set(title=case_name)
cb_data = contour_ax.contourf(x, y, dspin_dt_targ_combo, zpoints, cmap=cmc.vik)
# Plot Spin Sync
case_style = case_line_styles[case_i]
# Find sync data
tidal_heating_sync = tidal_heating_targ[sync_index, :]
de_dt_neg_sync = de_dt_neg[sync_index, :]
de_dt_pos_sync = de_dt_pos[sync_index, :]
# Plot
sync_heating_ax.plot(x, tidal_heating_sync, c=red, ls=case_style, label=case_name)
sync_eccen_ax.plot(x, de_dt_neg_sync, c=blue, ls=case_style, label=case_name)
sync_eccen_ax.plot(x, de_dt_pos_sync, c=red, ls=case_style)
print(f'Case {case_i+1} completed.', end='\r')
# Add color bar
cb = plt.colorbar(cb_data, pad=0.03, cax=colorbar_ax, ticks=zticks)
spaces = '$' + '\\; '*14 + '$'
cb.set_label('Decelerating ' + spaces + 'Accelerating\n$\\ddot{\\theta}$ [deg ' + year_name + '$^{-2}$]')
cb.ax.set_yticklabels(ztick_names)
# Add Spin-Sync Legend
custom_lines = [Line2D([0], [0], color='k', lw=2, ls=style) for style in case_line_styles]
sync_heating_ax.legend(custom_lines, case_names, loc='upper left')
# Add Grid lines
sync_heating_ax.grid(axis='x', which='major', alpha=0.5, ls='--')
sync_heating_ax.grid(axis='x', which='minor', alpha=0.45, ls='-.')
sync_eccen_ax.grid(axis='x', which='major', alpha=0.5, ls='--')
sync_eccen_ax.grid(axis='x', which='minor', alpha=0.45, ls='-.')
plt.show()
Plot some results
Change around the various inputs and see what happens!
Function time will be slow the first time you make a call for each new combination of order_l and eccentricity_trunc as background functions compile.

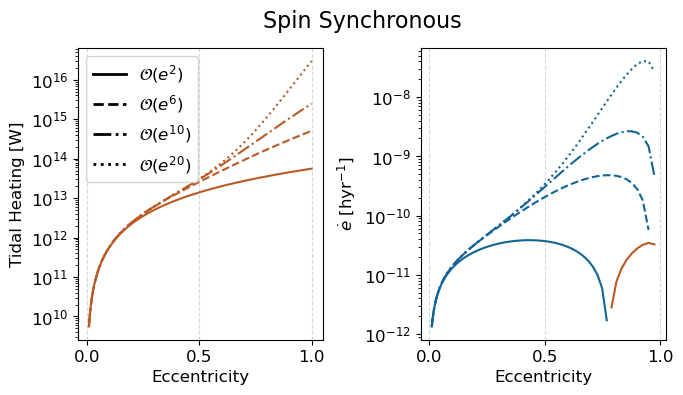

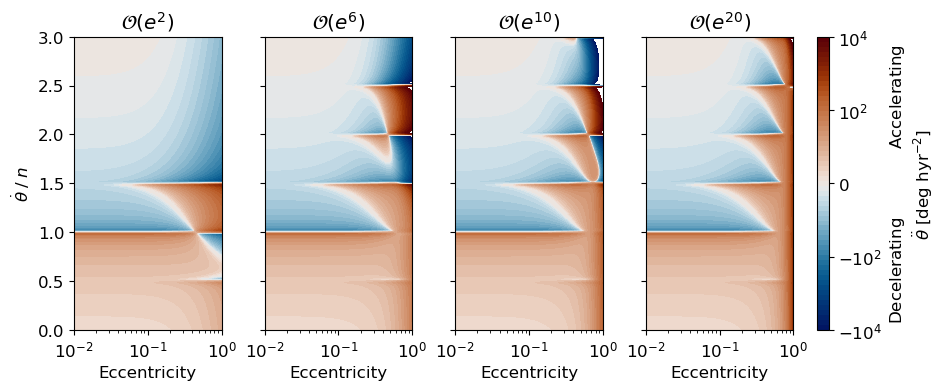

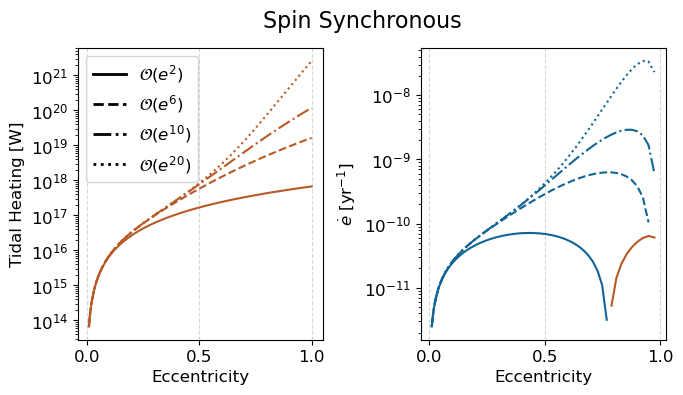

No Obliquity - Maxwell
[4]:
truncation_level_plots(target_obliquity=0., target_viscosity=1.e22, target_shear=50.e9, target_rheo='Maxwell',
target_k2=0.33, target_q=100.,
orbital_period=6.,
host_spin_period=None, host_k2=0.33, host_q=6000., host_obliquity=0.,
order_l_cases=(2, 2, 2, 2),
eccentricity_trunc_cases=(2, 6, 10, 20),
zpoints=np.linspace(-4, 4, 60), zticks=(-4, -2, 0, 2, 4), year_scale=1e2,
ztick_names=('$-10^{4}$', '$-10^{2}$', '$0$', '$10^{2}$', '$10^{4}$'))
Case 4 completed.
C:\Users\joepr\AppData\Local\Temp\ipykernel_12192\918181683.py:153: UserWarning: Adding colorbar to a different Figure <Figure size 933.188x379.2 with 5 Axes> than <Figure size 758.4x379.2 with 2 Axes> which fig.colorbar is called on.
cb = plt.colorbar(cb_data, pad=0.03, cax=colorbar_ax, ticks=zticks)

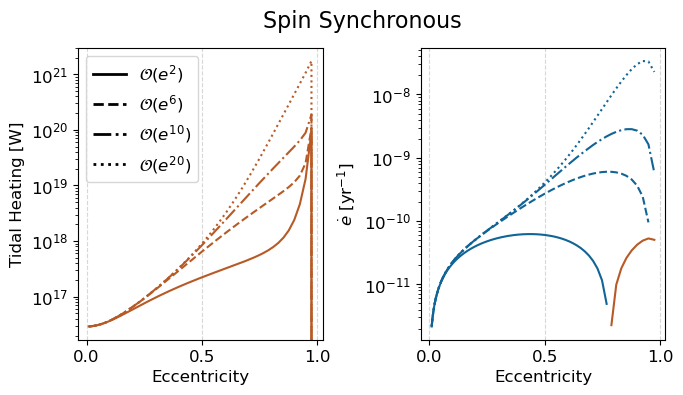

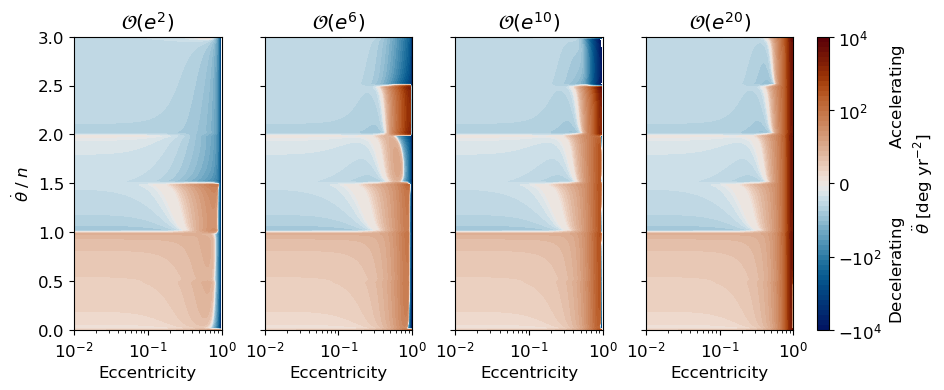

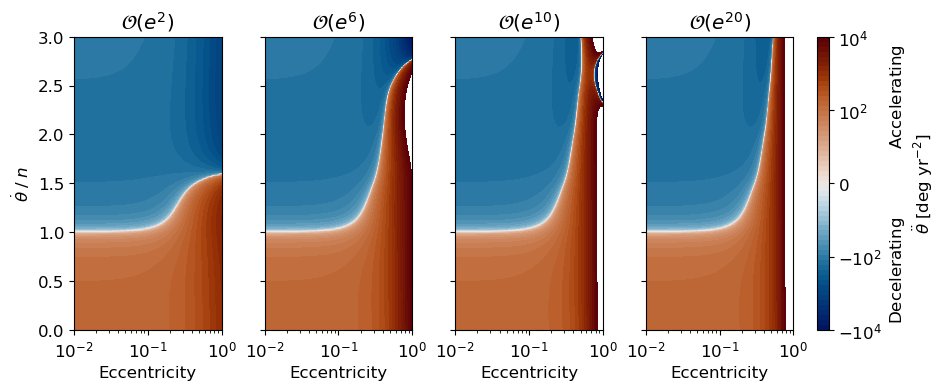

No Obliquity - Sundberg-Cooper
Note the different units of time from the previous plot!
[5]:
truncation_level_plots(target_obliquity=0., target_viscosity=1.e22, target_shear=50.e9, target_rheo='Sundberg-Cooper',
target_k2=0.33, target_q=100.,
orbital_period=6.,
host_spin_period=None, host_k2=0.33, host_q=6000., host_obliquity=0.,
order_l_cases=(2, 2, 2, 2),
eccentricity_trunc_cases=(2, 6, 10, 20),
zpoints=np.linspace(-4, 4, 60), zticks=(-4, -2, 0, 2, 4),
ztick_names=('$-10^{4}$', '$-10^{2}$', '$0$', '$10^{2}$', '$10^{4}$'))
Case 4 completed.
C:\Users\joepr\AppData\Local\Temp\ipykernel_12192\918181683.py:153: UserWarning: Adding colorbar to a different Figure <Figure size 933.188x379.2 with 5 Axes> than <Figure size 758.4x379.2 with 2 Axes> which fig.colorbar is called on.
cb = plt.colorbar(cb_data, pad=0.03, cax=colorbar_ax, ticks=zticks)

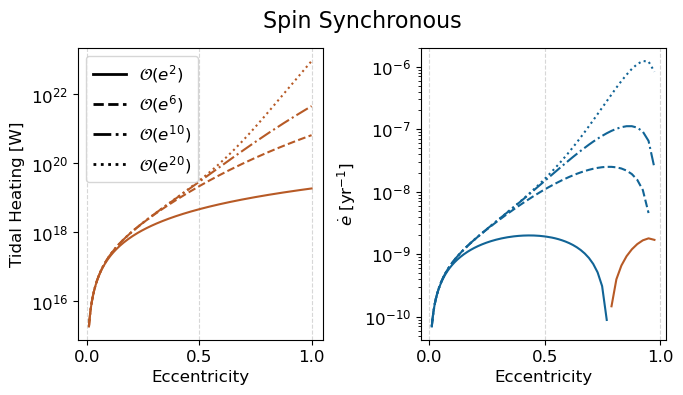

Non-Zero Obliquity
[6]:
truncation_level_plots(target_obliquity=np.radians(35.), target_viscosity=1.e22, target_shear=50.e9,
target_rheo='Sundberg-Cooper',
target_k2=0.33, target_q=100.,
orbital_period=6.,
host_spin_period=None, host_k2=0.33, host_q=6000., host_obliquity=0.,
order_l_cases=(2, 2, 2, 2),
eccentricity_trunc_cases=(2, 6, 10, 20),
zpoints=np.linspace(-4, 4, 60), zticks=(-4, -2, 0, 2, 4),
ztick_names=('$-10^{4}$', '$-10^{2}$', '$0$', '$10^{2}$', '$10^{4}$'))
Case 4 completed.
C:\Users\joepr\AppData\Local\Temp\ipykernel_12192\918181683.py:153: UserWarning: Adding colorbar to a different Figure <Figure size 933.188x379.2 with 5 Axes> than <Figure size 758.4x379.2 with 2 Axes> which fig.colorbar is called on.
cb = plt.colorbar(cb_data, pad=0.03, cax=colorbar_ax, ticks=zticks)

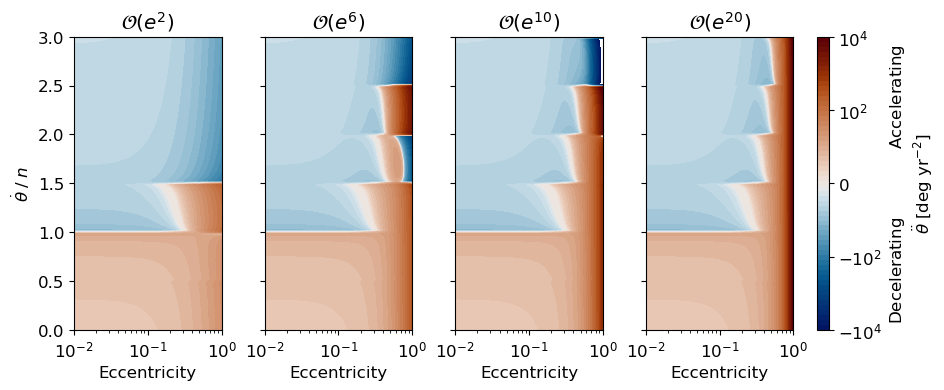

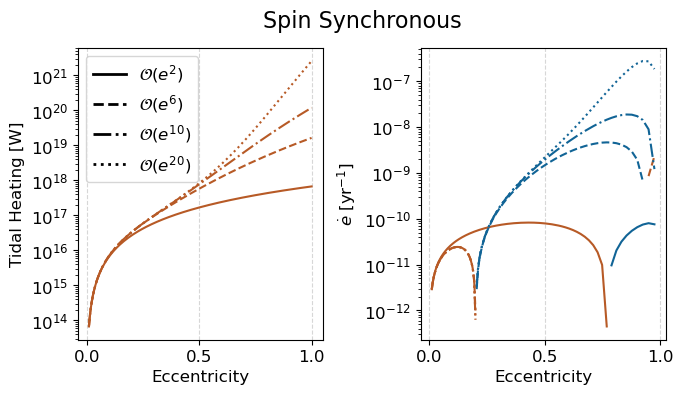

Highly Dissipative, NSR Host
[7]:
truncation_level_plots(target_obliquity=0., target_viscosity=1.e22, target_shear=50.e9,
target_rheo='Sundberg-Cooper',
target_k2=0.33, target_q=100.,
orbital_period=6.,
host_spin_period=3., host_k2=0.33, host_q=10., host_obliquity=0.,
order_l_cases=(2, 2, 2, 2),
eccentricity_trunc_cases=(2, 6, 10, 20),
zpoints=np.linspace(-4, 4, 60), zticks=(-4, -2, 0, 2, 4),
ztick_names=('$-10^{4}$', '$-10^{2}$', '$0$', '$10^{2}$', '$10^{4}$'))
Case 4 completed.
C:\Users\joepr\AppData\Local\Temp\ipykernel_12192\918181683.py:153: UserWarning: Adding colorbar to a different Figure <Figure size 933.188x379.2 with 5 Axes> than <Figure size 758.4x379.2 with 2 Axes> which fig.colorbar is called on.
cb = plt.colorbar(cb_data, pad=0.03, cax=colorbar_ax, ticks=zticks)

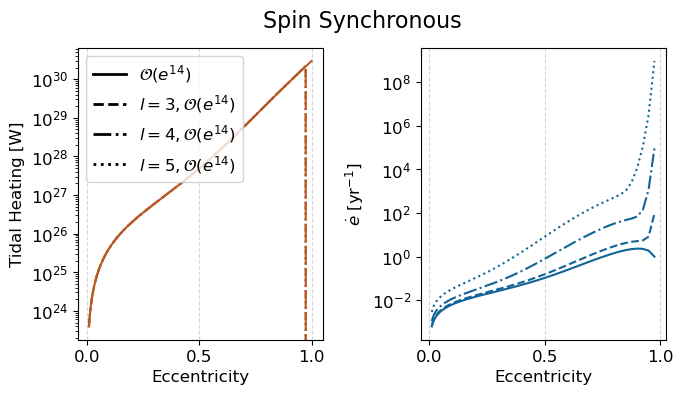

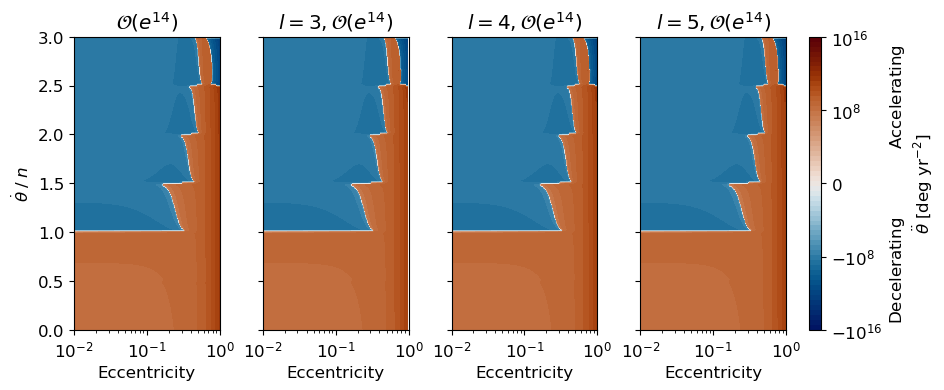

Different Viscoelastic Properties
[8]:
truncation_level_plots(target_obliquity=0., target_viscosity=1.e14, target_shear=3.e9, target_rheo='Sundberg-Cooper',
target_k2=0.33, target_q=100.,
orbital_period=6.,
host_spin_period=None, host_k2=0.33, host_q=6000., host_obliquity=0.,
order_l_cases=(2, 2, 2, 2),
eccentricity_trunc_cases=(2, 6, 10, 20),
zpoints=np.linspace(-4, 4, 60), zticks=(-4, -2, 0, 2, 4),
ztick_names=('$-10^{4}$', '$-10^{2}$', '$0$', '$10^{2}$', '$10^{4}$'))
Case 4 completed.
C:\Users\joepr\AppData\Local\Temp\ipykernel_12192\918181683.py:153: UserWarning: Adding colorbar to a different Figure <Figure size 933.188x379.2 with 5 Axes> than <Figure size 758.4x379.2 with 2 Axes> which fig.colorbar is called on.
cb = plt.colorbar(cb_data, pad=0.03, cax=colorbar_ax, ticks=zticks)
Higher Order-l
These can take quite a while to run!
We move the planet much closer to allow for more difference at the higher l’s.
[9]:
truncation_level_plots(target_obliquity=0., target_viscosity=1.e22, target_shear=50.e9, target_rheo='Sundberg-Cooper',
target_k2=0.33, target_q=100.,
orbital_period=0.05,
host_spin_period=None, host_k2=0.33, host_q=6000., host_obliquity=0.,
order_l_cases=(2, 3, 4, 5),
eccentricity_trunc_cases=(14, 14, 14, 14),
zpoints=np.linspace(-16, 16, 60), zticks=(-16, -8, 0, 8, 16),
ztick_names=('$-10^{16}$', '$-10^{8}$', '$0$', '$10^{8}$', '$10^{16}$'))
Case 4 completed.
C:\Users\joepr\AppData\Local\Temp\ipykernel_12192\918181683.py:153: UserWarning: Adding colorbar to a different Figure <Figure size 933.188x379.2 with 5 Axes> than <Figure size 758.4x379.2 with 2 Axes> which fig.colorbar is called on.
cb = plt.colorbar(cb_data, pad=0.03, cax=colorbar_ax, ticks=zticks)
